HEAVY DUTY REELS

Alemite

  • Superior Performance
    Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time
  • Anti-Lockout Design
    Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel
  • Corrosion Resistant
    Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments
  • Easy Installation and Maintenance
    Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy
  • Durable
    Heavy metal arbor design withstands extreme stress and eliminates breakage associated with non-metal and light weight metal arbors
  • Adjustable and Versatile
    5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space





    RJA Part # Description Select Quantity
    ALE-8078-F
    3/8" x 50' A/W Reel
    • Maroon
    • Blue

    ALE-8078-M
    1/2" x 50' A/W Reel
    • Maroon

    ALE-8078-C
    1/2" x 30' Oil Reel
    • Maroon

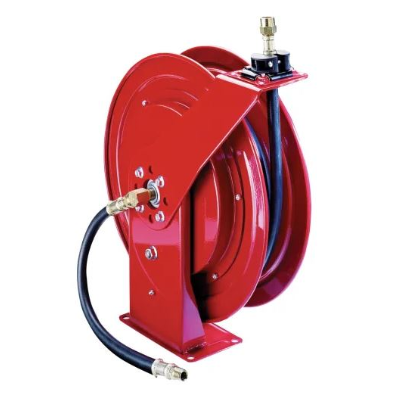

    ALE-8078-D
    1/2" x 50' Oil Reel
    • Maroon
    • Blue
    • Black

    ALE-8078-B
    1/4" x 50' Grease Reel
    • Maroon
    • Blue

    ALE-8078-T
    3/8" x 50' Grease Reel
    • Maroon

    Alemite Heavy Duty Reels set the industry standard for reliable, rugged performance in tough work environments. Engineered for optimum performance and safety, these reels are suitable for a wide range of demanding applications.

    PRODUCTS
    HANDLED
    HOSE
    SIZE
    MAX
    PRESSURE
    INLETOUTLETCOLOR
    ALE-8078-Fair
    water
    3/8" x 50'300 psi1/2" NPTF(m)1/4" NPTF(m)maroon
    ALE-8078-FBLair
    water
    3/8" x 50'300 psi1/2" NPTF(m)1/4" NPTF(m)blue
    ALE-8078-Mair
    water
    1/2" x 50'300 psi1/2" NPTF(m)1/2" NPTF(m)maroon
    ALE-8078-Coil1/2" x 30'1,500 psi1/2" NPTF(m)1/2" NPTF(m)maroon
    ALE-8078-Doil1/2" x 50'1,500 psi1/2" NPTF(m)1/2" NPTF(m)maroon
    ALE-8078-DBLoil1/2" x 50'1,500 psi1/2" NPTF(m)1/2" NPTF(m)blue
    ALE-8078-DBKoil1/2" x 50'1,500 psi1/2" NPTF(m)1/2" NPTF(m)black
    ALE-8078-Bgrease1/4" x 50'6,000 psi3/8" NPTF(m)1/4" NPTF(f)maroon
    ALE-8078-BBLgrease1/4" x 50'6,000 psi3/8" NPTF(m)1/4" NPTF(f)blue
    ALE-8078-Tgrease3/8" x 50'6,400 psi3/8" NPTF(m)1/4" NPTF(f)maroon
    • Reel
    • Hose
    • Hose Stop
    • Union
    • 24" Connecting Hose
