FIRE-BALL 300 50:1 GREASE PUMP PACKAGE

Availability: Stocked by Factory

Usually Ships In

7-14 Business Days
Item #: GRA-225006

  • Reliable Flow
    A 3" differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
  • Durable
    Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs
    Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life
    In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime
    Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing
    Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing
    Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant
    Utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum & chrome on key components for longer life.




    Options:


    Update price

    APPLICATIONS

    • Automotive Dealerships
    • Fast Lube Centers
    • Service Shops
    • Heavy-Duty Dealerships
    • Fleet Services Facilities
    • In-Plant
    • Lube Trucks
    • Mining
    DRUM SIZEBASE TYPE

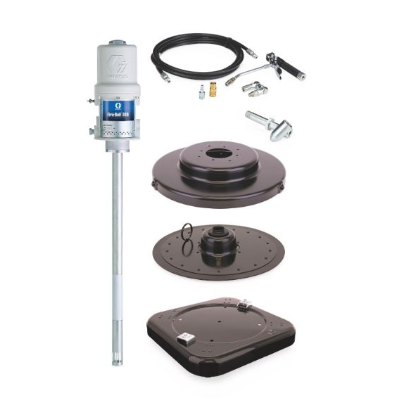

    GRA-225006120 lbcaster base

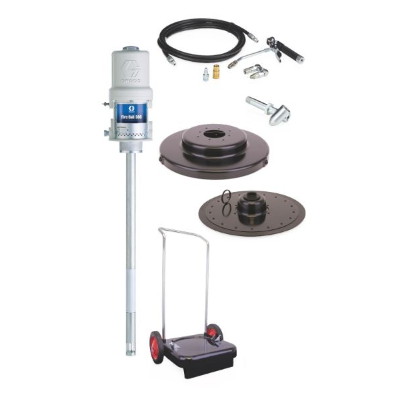

    GRA-225026120 lb2-wheel cart
    GRA-26C185120 lbcaster base

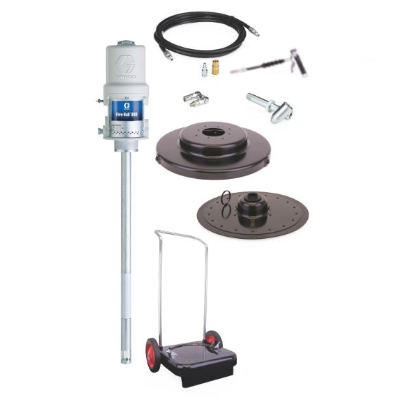

    GRA-26C186120 lb2-wheel cart

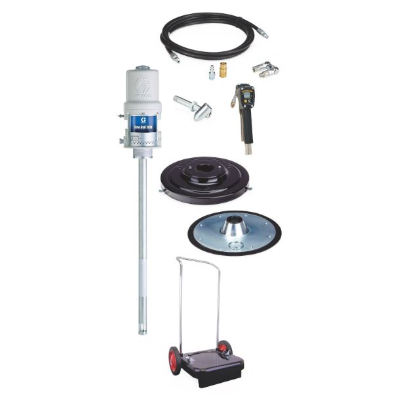

    GRA-245696120 lb2-wheel cart
    GRA-222245120 lbheavy-duty 2-wheel cart

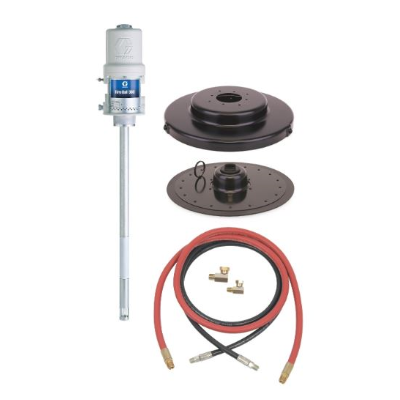

    GRA-225014120 lbstationary - no base

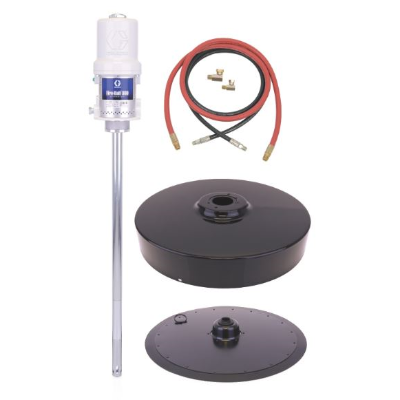

    GRA-225016400 lbstationary - no base
    AIR INLET3/8" NPT(f)
    FLUID INLETslotted NPT(f)
    FLUID OUTLET1/4" NPT(f)
    AIRMOTOR EFFECTIVE DIAMETER3"
    APPLICATIONindustrial
    FLUIDSgrease up to NLGI #2
    MAX AIR CONSUMPTION22.8 SCFM
    MAX AIR INLET PRESSURE140 psi
    MAX CONTINUOUS CYCLE RATE76 CPM
    MAX INTERMINTENT CYCLE RATE76 CPM
    MAX WORKING PRESSURE5,000 psi
    POWER TYPEpneumatic
    RATIO50:1
    SOUND POWER LEVEL85.6 dBA
    SOUND PRESSURE LEVEL77.8 dBA
    WETTED MATERIALScs, delrin, Buna-N, polyurethane
