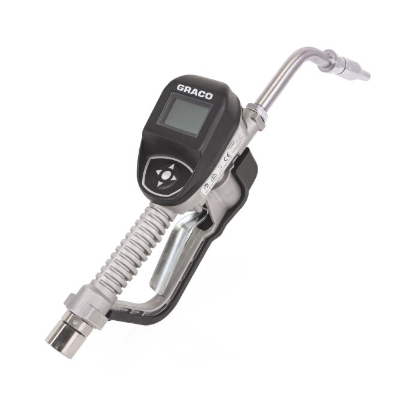

SDM8 ELECTRONIC METERED HANDLES


  • Large, Intuitive Display
    High-contrast display for low and bright light conditions
  • Long Valve Life
    Cartridge spool valve specifically designed to reduce wear and reduce costly down time
  • Ergonomic
    Four-finger trigger and easy-to-use button pad reduce worker fatigue
  • Reliable
    Time-tested Graco engineering
  • Durable
    Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
  • Long Battery Life
    Uses 4 AA easy-to-replace batteries




    RJA Part # Description Select Quantity
    GRA-25M404
    Oil Handle

    GRA-25M405
    Antifreeze Handle

    Graco’s premium SDM8 meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

    COMPATIBLE MATERIALSoil, ATF
    DISPENSE TYPEmanual
    DISPLAY TYPEelectronic
    EXTENSION TYPErigid / flex
    FLUID INLET1/2" NPT(f)
    FLOW RATE0.25-8 gpm
    MAX OPERATING TEMPERATURE158°F
    MAX RECORDED DISPENSE9999
    MAX WORKING PRESSURE1,500 psi
    METER ACCURACY+/- 0.5
    WETTED MATERIALSaluminum, stainless steel, PBT/PC, zinc, nitrile, rubber, CS
    UNIT OF MEASUREquart, pint, gallon, liter
    TRIGGER PROTECTION TYPEguard
    TRIGGER LOCKnon-locking
    RECOMMENDED ENVIRONMENTindoor
    OUTLET THREAD TYPEstraight thread o-ring boss
    NOZZLE TYPEautomatic quick-close
    POWER SOURCE4 AA batteries
    COMPATIBLE MATERIALSoil, antifreeze, ATF, gear oil
    DISPENSE TYPEmanual
    DISPLAY TYPEelectronic
    EXTENSION TYPErigid / flex
    FLUID INLET1/2" NPT(f)
    FLOW RATE0.25-8 gpm
    MAX OPERATING TEMPERATURE158°F
    MAX RECORDED DISPENSE9999
    MAX WORKING PRESSURE1,500 psi
    METER ACCURACY+/- 0.5
    WETTED MATERIALSaluminum, stainless steel, PBT/PC, zinc, nitrile, rubber, CS
    UNIT OF MEASUREquart, pint, gallon, liter
    TRIGGER PROTECTION TYPEguard
    TRIGGER LOCKnon-locking
    RECOMMENDED ENVIRONMENTindoor
    OUTLET THREAD TYPEstraight thread o-ring boss
    NOZZLE TYPEmanual
    POWER SOURCE4 AA batteries
