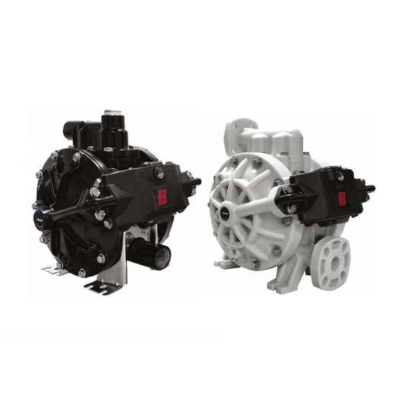

CF50 1" DIAPHRAGM PUMP

Availability: Stocked by RJA

Usually Ships In

1-2 Business Days
Item #: BAL-1120-037

  • High Performance
    Increased flow rate with minimal air consumption
  • Dependability
    Non-icing air motor
  • Versatile
    Inlet and outlet ports can be oriented to fit the installation/application
  • Ease of Service
    Diaphragms and air motor can be service with the pump installed without removal




    Fluids Handled:


    Update price

    CenterFlo 50 is a high performance 1” AODD pump with many unique features. The new CF50 utilizes a flow through fluid design that is more air efficient than traditional AODD pumps. Capable of distributing up to 50 gal/min. This equates to higher performance, versatility along with easy serviceability.

    AIR INLET3/8" NPSM(f)
    FLUID INLET PORT
              1120-0371" NPT(f)
              1120-0381" ANSI flange B16.50 150 lb
    FLUID OUTLET PORT
              1120-0371" NPT(f)
              1120-0381" ANSI flange B16.50 150 lb
    MAX FREE FLOW53 gpm
    OPERATING AIR PRESSURE RANGE22–102 psi
    SOLIDS IN SUSPENSION1/8"
    WETTED MATERIALS
              1120-037aluminum, Hytrel, acetal, Buna-N™, stainless steel
              1120-038PTFE (teflon), polypropylene, stainless steel, Hytrel, FKN
    RECOMMENDED FLUIDS
              1120-037light viscosity fluids, synthetic, mineral oils, anti-freeze, and used oil
              1120-038windshield wash solution
    RECOMMENDED APPLICATIONS
    		fluid dispensing, transfer, and evacuation
