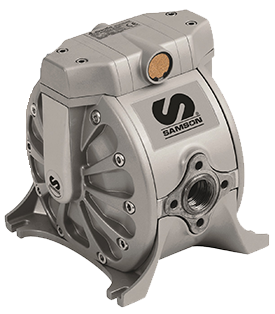

SAMSON 1" DF100 DIAPHRAGM OIL PUMP

Availability: Stocked by RJA

Usually Ships In

1-2 Business Days
Item #: SAM-551030






    SAMSON 1" DF100 DIAPHRAGM PUMP FOR OIL 28 gpm Aluminum

    Pump Pressure Ratio1:1
    Maximum Free Flow Rate28 gpm (100 l/min)
    Maximum Suction Lift23" (7 m)
    Minimum Air Pressure22 psi (1.5 bar)
    Maximum Air Pressure115 psi (8 bar)
    Max size Solid Suspension3/16" (4 mm)
    Air inlet3/8" NPT(F)
    Fluid Outlet1" NPT(F)
    551 164A 1" BSPP
    Fluid Inlet1" NPT(F)
     551 164A 1" BSPP
    Wetted MaterialsPolypropylene / Buna-N / Aluminum / Hytrel /
    Stainless Steel / Acetal
    Mounting Footprint8  1/2" x 8 37/64"  Poly
    8  1/2" x 6 19/64"  Metal
