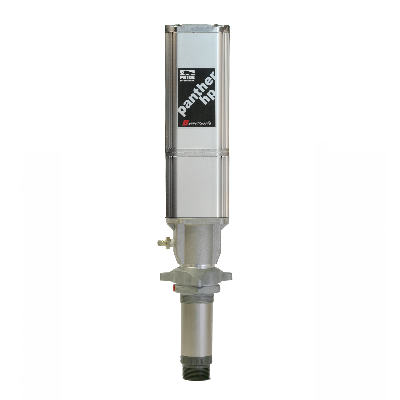

Pride Series pumps are manufactured with a mechanical air valve and piston design which is more forgiving to environments with contaminated air. The 5:1 version is a medium pressure pump for supplying higher pressures and for longer pumping distances than the 3:1 version but at lower volume ideal for longer pumping distances and overall flow rates of 4 gpm.
| RATIO | 5:1 |
| OPERATING AIR PRESSURE RANGE | 10–150 psi |
| DELIVERY RATE | 8 gpm |
| AIR CONSUMPTION | 24.80 SCFM |
| MAX FLUID STALL PRESSURE | 760 psi |
| CYCLES PER GALLON | 57 |
| AIR INLET | 1/4” NPT(f) |
| FLUID INLET | 1” NPT(f), 1-1/2” NPT(m) |
| FLUID OUTLET | 1/2” NPT(f) |
| EFFECTIVE AIR PISTON DIAMETER | 2.5” |
| WETTER MATERIALS | steel, Buna-N™, stainless steel, nickel plated steel, nylon, ultrathane, & aluminum |
NOTE: Thermal expansion of the fluid in a distribution system can cause an increase in system pressure that can damage lubrication system components. Use pressure relief valve kit included with this pump.
NOTE: RJA recommends the addition of a filter reg to prolong the life of the pump.
Warning! Do not use any LYNX® series products with flammable fluids. Verify fluid compatibility with MSDS sheets.
- Pump
- Bung Adapter
- Pressure Relief Valve
- Suction Pipe*
- Air Hose*
- Oil Hose*
*TMO packages only
