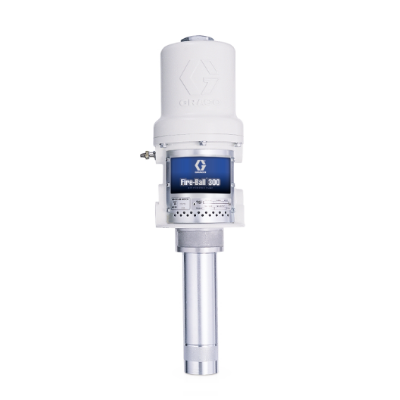

FIRE-BALL 300 5:1 OIL PUMP

Availability: Stocked by RJA

Usually Ships In

1-2 Business Days
Item #: GRA-203876

  • Reliable Flow
    A 3" differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
  • Durable
    Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs
    Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life
    In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime
    Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing
    Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing
    Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant
    U    tilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.




    Size:


    Update price

    Install the Fire-Ball 300 5:1 in high pressure, medium volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops.

    APPLICATIONS

    • Automotive Dealerships
    • Fast Lube Centers
    • Service Shops
    • Heavy-Duty Dealerships
    • Fleet Services Factilites
    • In-Plant
    • Lube Trucks
    • Mining

    FLUIDS HANDLED

    • Petroleum
    • Synthetic-Based Oils (motor, gear, & ATF)
    AIR INLET3/8" NPT(f)
    FLUID INLET1-1/2" NPT(f)
    FLUID OUTLET1/2" NPT(f)
    AIRMOTOR EFFECTIVE DIAMETER3"
    CYCLES PER GALLON30
    FLUIDSoil
    MAX AIR CONSUMPTION25 SCFM
    MAX AIR INLET PRESSURE180 psi
    MAX CONTINUOUS CYCLE RATE70 CPM
    MAX INTERMINTENT CYCLE RATE70 CPM
    MAX WORKING PRESSURE900 psi
    POWER TYPEpneumatic
    RATIO5:1
    SOUND POWER LEVEL85.6 dBA
    SOUND PRESSURE LEVEL77.8 dBA
    WETTED MATERIALSsteel, polyurethane, aluminum, Buna-N

    STUB & COVER MOUNT OPTIONS

    • Pump only


    BUNG MOUNT OPTIONS

    • Pump
    • Bung Adapter


    *Thermal relief kit sold separately.
