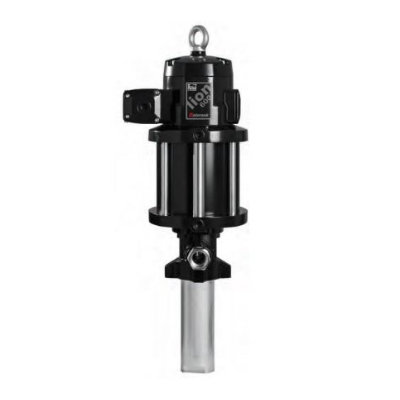

High pressure pump for oil systems where medium volume dispensing using simultaneous dispense points is required. High pressure pump is recommended for long pumping distances and/or cold weather applications.
| RATIO | 10:1 |
| OPERATING AIR PRESSURE | 30-180 psi |
| AIR CONSUMPTION | 30 cfm |
| MAX FLUID OUTLET PRESSURE | 1,700 psi |
| AIR MOTOR EFFECTIVE DIAMETER | 4.5" |
| AIR MOTOR STROKE | 4" |
| DELIVERY AT 80 CPM | 4 gpm |
| MAX FREE FLOW DELIVERY | 18 gpm |
| AIR INLET | 1/2" NPT(f) |
| FLUID INLET | 1-1/2" NPT(f) |
| FLUID OUTLET | 3/4" NPT(f) |
| WETTED MATERIALS | cast iron, hard chromed steel, steel, polyurethane, Buna-N, and zinc |
| NOISE LEVEL | 80 dB |
NOTE: Thermal expansion of the fluid in a distribution system can cause an increase in system pressure that can damage lubrication system components. Use pressure relief valve kit included with this pump.
Warning! Do not use any Lion™ 450/600 series products with flammable fluids.
Verify fluid compatibility with MSDS sheets.
Contact Balcrank for specific system design performance and technical data.
