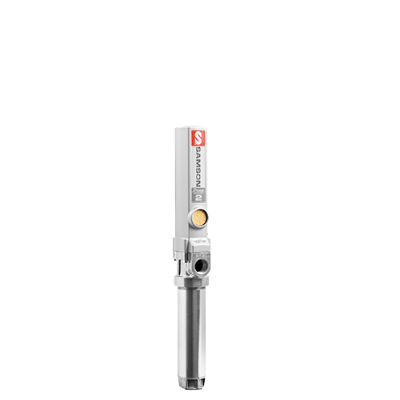

SAMSON 1:1 USED OIL SUCTION PUMP

Item #: SAM-351121
Samson






Quantity:

SAMSON PM2 1:1 SUCTION PUMP - For EvacuMaster Series

Pump Pressure Ratio1:1
Air Pressure Operating Range20-140 psi (1.5-10 bar)
Air Consumption (1)5.3 scfm (150 NL/min)
Maximum Fluid Outlet Pressure140 psi (10 bar)
Air Motor Diameter2" (51 mm)
Air Motor Effective Diameter1 1/2" (35 mm)
Air Motor Stroke3" (75 mm)
Delivery at 235 cpm7.75 gpm (20 l/min)
Maximum Free Flow Delivery (2)13.7 gpm (52 l/min)
Air inlet1/4" NPT(F)
Fluid inlet (stub pump only)1" NPT(F)
Fluid outlet3/4" NPT(F)
Wetted MaterialsAluminum / Steel / Polyurethane / NBR / Acetal
Noise LevelPump noise level meets OSHA requirements at all recommended operating air pressures

(1) Air consumption with 90 psi (6 bar) air inlet pressure and 150 cycles per minute.
(2) Maximum free delivery at 100 psi (7 bar).

Fluids Handled

  • Synthetic and mineral based oil
  • Transmission fluid
  • Hydraulic oil

Markets Served

  • Auto dealers
  • Service Shops
  • Fast lube centers
  • Agriculture
  • Industrial
